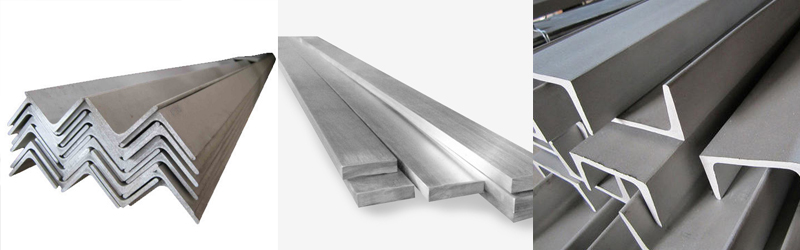

Angle, Channels, Flat bar

Our extensive lineup of Angle, Channels, Flat bar.



We supply a wide range of precisely engineered stainless steel Angle, Channels, Flat bar, made in compliance with international quality and safety standards. Our range comprises of stainless steel welded & seamless, Carbon Steel, Nickel, Alloy Angle, Channels, Flat bar. Available in different dimensions & grades, these stainless steel welded tubes and pipes are widely used in different industries like power, engineering, construction and many more. We offer products at highly competitive prices and deliver consignment within stipulated time .

Angles

Mahavir Seamless Tube Pvt. Ltd. is a leading supplier of wide range of Stainless Steel Angles. Also known as L-shaped cross sections. Stainless Steel Angles is a hot rolled angle shape available in both equal or unequal edges and angle lenght. Stainless Steel Angles are used for all types of fabrication projects.


Size Range

Size (mm) Size (inch) Thickness (mm) Thickness (in Inches)
25 x 25 1" x 1" 3, 4, 5, 6 1/8", 1/6", 3/16", 1/4"
30 x 30 1-1/6" X 1-1/6" 3, 4, 5 1/8", 1/6", 3/16"
32 x 32 1-1/4" X 1-1/4" 3, 4, 5, 6 1/8", 1/6", 3/16", 3/16"
35 x 35 1-3/8" X 1-3/8" 3, 4 , 5 1/8", 1/6", 3/16"
38.1 X 38.1 1-1/2" X 1-1/2" 3.17, 4.76, 6.35 1/8", 3/16", 1/4"
40 x 40 1-4/7" X 1-4/7" 3, 4, 5, 6 1/8", 1/6", 3/16", 1/4"
45 X 45 1-7/9" X 1-7/9" 3, 4 , 5, 6 1/8", 1/6", 3/16", 3/16"
50 x 50 2" X 2" 3, 4, 5, 6 1/8", 1/6", 3/16", 1/4"
60 x 60 2-3/8" X 2-3/8" 5, 6 3/16", 1/4"
63 x 63 2-1/2" X 2-1/2" 5, 6 3/16", 1/4"
65 x 65 2-5/9" X 2-5/9" 5, 6 3/16", 1/4"
70 x 70 2-3/4" X 2-3/4" 6, 7, 8, 9, 10 1/4", 9/32", 5/16", 3/8",2/5"
75 x 75 3" X3" 6, 7, 8, 9, 10, 12 1/4", 9/32", 5/16", 3/8",2/5", 1/2"
80 x 80 3-1/8" X 3-1/8" 6, 7, 8, 9, 10 1/4" , 9/32", 5/16", 3/8", 2/5"
90 X 90 3-1/2" X 3-1/2" 6, 9 1/4", 3/8"
100 X 100 4" X 4 6, 8, 9, 10 1/4", 5/16", 3/8", 2/5"
101.6 X 101.6 4" X 4 6.35, 9.52, 12.7 1/4", 3/8", 1/2"

Channels

Mahavir Seamless Tube Pvt. Ltd. is a leading supplier of wide range of Stainless Steel Channels. Stainless steel channel is shaped using a vertical web with top and bottom flanges at a 90 degree angle to the web and inside radius corners to increase the channel’s strength. It can be extruded, hot rolled or laser-fused. It is used for applications that require the high strength, corrosion-resistance, toughness, and easy sanitizing properties of stainless steel. These include raceways, braces, supports, and frames for machinery, equipment and housings in corrosive environments.


Channel Sizes

Products Size Range Specifications Supply Conditions Tolerance
SS Channels 50.80 x 25.40 x 4.76 mm
50.80 x 25.40 x 6.35 mm
75 x 40 x 4.7 x 6.9 mm
76.20 x 38.10 x 6.35 mm
80 x 40 x 6 mm
80 x 45 x 6 x 8 mm
100 x 50 x 6 x 8.5 mm
101.60 x 40.13 x 4.57 mm
101.60 x 43.69 x 7.93 mm
101.60 x 44.45 x 6.35 mm
130 x 65 x 6 x 6 mm
152.40 x 48.77 x 5.08 mm
EN, DIN, ASTM, AISI, ASME, JIS, NACE Hot Rolled Annealed and Pickled ASTM A484, EN 10279

Flat Bar Sizes


Size Range

Size (mm) Size (inch) Thickness (mm) Thickness (in Inches)
22 mm 7/8” 17 mm & 18 mm 2/3” - 5/7"
25mm 1" 5 mm to 20 mm 3/16” - 4/5”
30 mm 1-3/16" 5 mm to 20 mm 3/16” - 4/5”
32mm 1-1/4" 6 mm to 20 mm 1/4” - 4/5”
35mm 1-3/8" 5 mm to 20 mm 3/16” - 3/16”
40mm 1-4/7" 5 mm to 25 mm 3/16” - 1”
45mm 1-7/9" 5 mm to 25 mm 3/16” - 1”
47 mm 1-6/7" 17,25 & 32 mm 2/3”, 1” & 1-1/4”
50mm 2" 5 mm to 32 mm 3/16” - 1-1/4”
55mm 2-1/16” 5 mm to 25 mm 3/16” - 1”
57 mm 2-1/4” 32 mm 1-1/4”
60 mm 2-3/8” 5 mm to 35 mm 3/16” - 1-3/8”
63mm 2-1/2" 10 mm to 30 mm 3/8” - 1-3/16”
65mm 2-5/9" 10 to 30 & 35 mm 3/8” - 1-3/16”, & 1-3/8”
70mm 2-3/4" 6 mm to 25 mm & 40 mm 1/4” - 1”, & 1-4/7”
75mm 3" 8 mm to 25 mm 5/16” - 1”
80mm 3-1/8" 8 mm to 20 mm 5/16” - 4/5”
90mm 3-1/2" 8 mm to 20 mm 5/16”- 4/5”
100mm 4" 8, 10, 12 5/16”, 3/8”, 1/2”

Stainless & Duplex Steel

Stainless Steel :
ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L .
ASTM / ASME SA 358 CL 1 & CL 3 GR . 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316H , 321 , 321H , 347 .
Duplex Steel :ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.


Carbon & Alloy Steel

Carbon Steel :ASTM / ASME A 53 GR. A , B
ASTM / ASME 106 GR. A , B ,C .
API 5L GR. B , API 5L X 42 , X 46 , X 52 , X 60 , X 70.
ASTM / ASME A 691 GRA , B ,C
Alloy Steel:
ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.


Nickel & Alloy

Nickel Alloy :ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 )
ASTM / ASME SB 163 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 )
ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 )
ASTM / ASME SB 704/705 UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625)
ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276 )


Hastelloy

Grades :Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000


Inconel

Grades :Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750


Incoloy

Grades :Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS


Monel

Grades :Monel 400, Monel k500


Titanium

Grades :Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23


Tantalum

Grades :Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23
